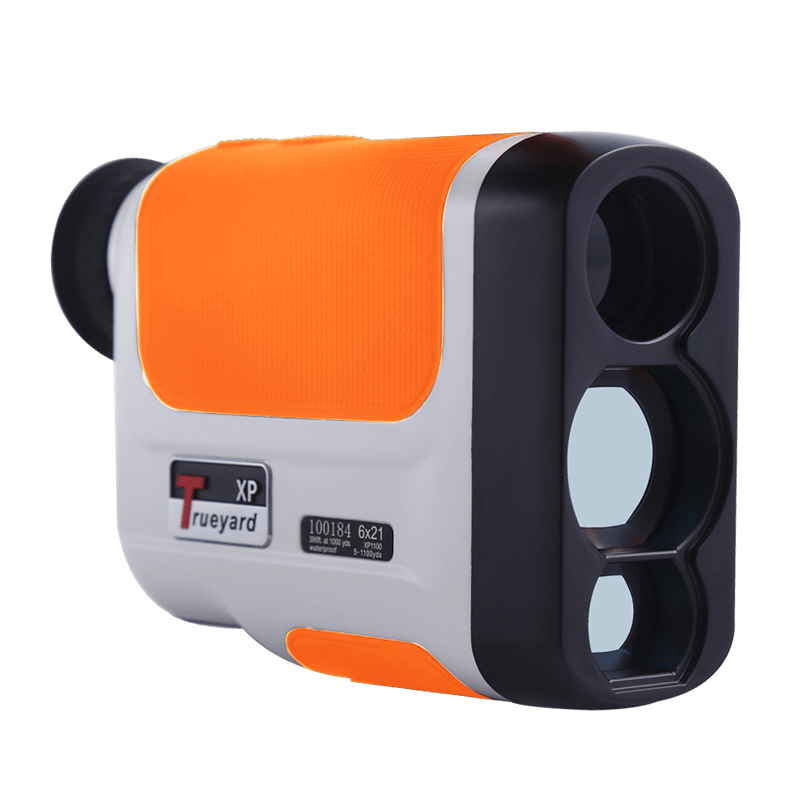

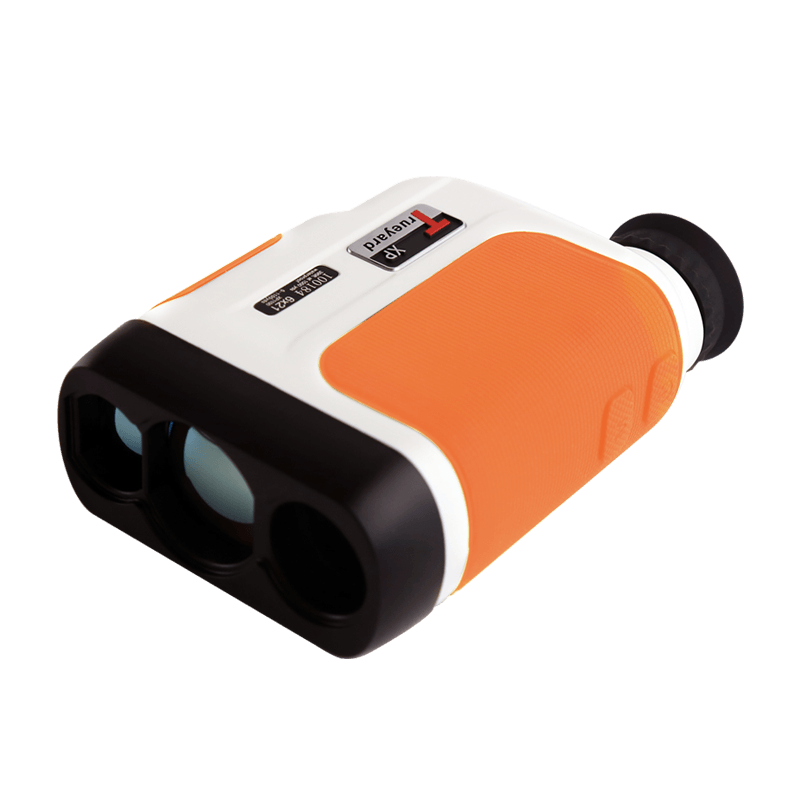

Trueyard Range Finder

The TRUEYARD XP series laser rangefinder combines the functions of a common telescope and laser ranging, and is equipped with an external display screen, which can measure the distance of objects within a certain range while observing objects. It has the characteristics of fast measurement time, intuitive data display, low power consumption, and automatic power off when not in use. The range finder has a small laser emission power and is safe for human eyes. It does not need to cooperate with the target and can measure the target object. It is small in size, beautiful in appearance, light in weight and easy to carry. It uses a 3V battery inside the machine, which is easy to replace.



Functional use

       GP series golf dedicated model, designed for the measurement of flagpole targets. Its unique flagpole lock function uses a rangefinder to indicate vibration when the target is measured. Display angle and distance and correction function when the target position is uphill and downhill.

Instrument Features

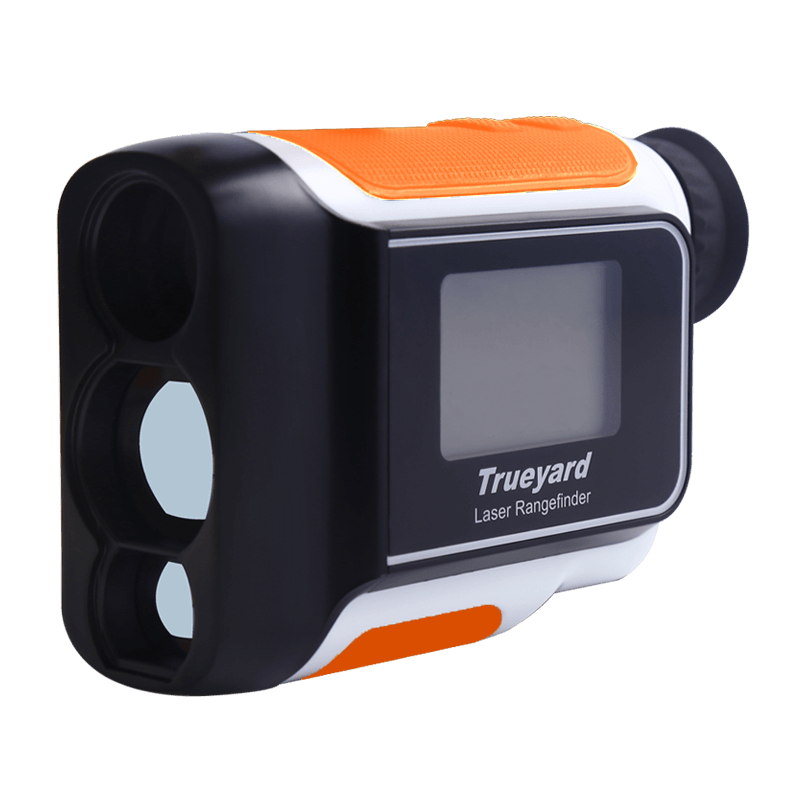

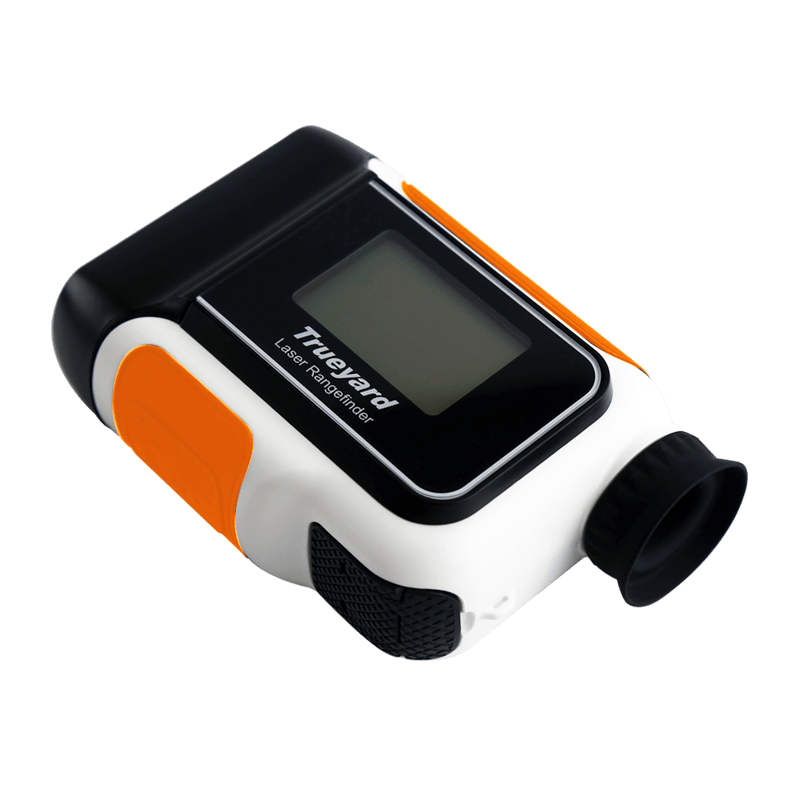

Equipped with a 1.8 "high-definition LCD external display, which directly displays the measurement results and provides a good display experience.

High-brightness backlight display for easy viewing of data in low-light environments.

High precision, support precision display within 200 yards ± 0.5 yards.

6x magnification telescope, 21mm high-definition TrueOptics multilayer coating lens.

Working conditions

Working temperature: -20-50 ℃



Use humidity: "= 80%



Measurement effect

The distance of the rangefinder is related to the nature of the measured target, the angle of the emitted light beam to the target surface, and weather visibility.

    Generally speaking, the target surface is smooth, bright color, large area, the beam is perpendicular to the target surface, and the distance is measured in clear weather; the target surface is rough, dark, and the area is small, the beam is inclined to the target surface, and measured in fog The distance is close.

    In the foggy mode, the starting target must be greater than 25 meters to display the distance normally.



Precautions

Do not wipe the glass surface by hand, please use a special lens cloth. Wipe the outer surface with a soft cloth.

Do not install batteries upside down; remove batteries when not in use for long periods of time.

Store in a dry place when not in use.

It should be used in the temperature range of -20 ℃ ～ + 50 ℃.

Do not use both buttons at the same time.

Don't look directly into the sun.
